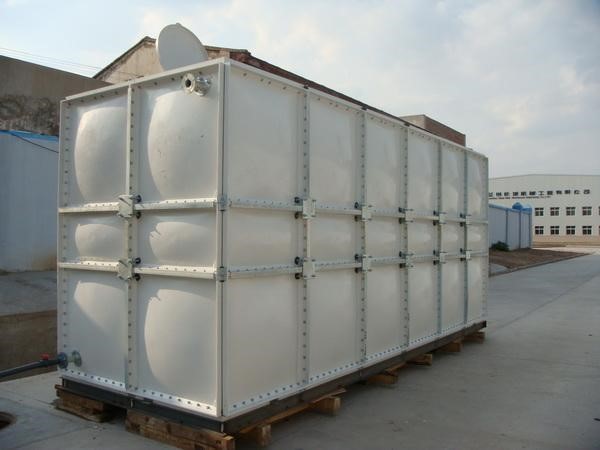

SMC Water Tank
SMC Water Tank is assembled by moulding single board, sealing metallic structure, and plumbing. We can assemble the one with 0.125m3~5,000m3 according to your requirement, the period of use is over 30 years usage.
Product Name: SMC Water Tank
ProductNo: 16326-448
ProductModel: SMC
Unit：T
Tag：SMC Water Tank
Click：1569
SMC Water Tank
SMC Water Tank is assembled by moulding single board, sealing metallic structure, and plumbing. We can assemble the one with 0.125m3~5,000m3 according to your requirement, the period of use is over 30 years usage.
It is widely used in residential buildings, hotels, office buildings, R&D buildings, schools, malls,
restaurants and other public facilities as well as places with high requirements for water quality, such as hospitals and food processing plants.
The advantage
1. light weight and high strength, which easy to transport and assemble at site
2. excellent waterproof property, with no leakage
3. anti-aging with long service for over 30 years.
4. maintenance-free
5. cost saving
SMC water tank physical and chemical properties
Project | Performance index |
Tensile strength (Mpa) | ≥60 |
Bending strength (Mpa) | ≥100 |
Bending modulus (Gpa) | ≥7.0 |
Pap hardness | ≥60 |
Bibulous rate,% | ≤1.0 |
Glass fiber content,% | ≥25 |
Water storage tank panels
Material | Size | Panel Shape | Thickness | Remarks |

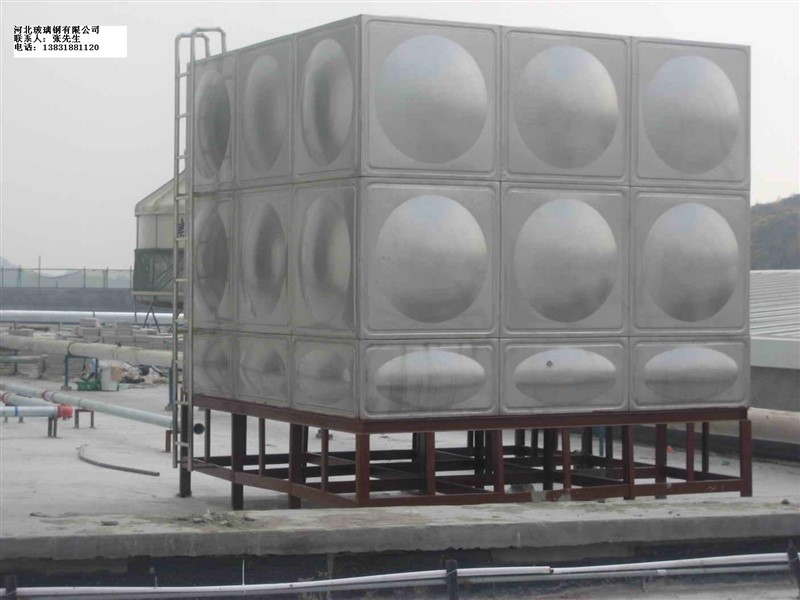

Stainless Steel 316 | 1x1m, 1x0.5m, 0.5m x 0.5m | Ball shape | 1-5mm |
Thickness Tolerance: ±0.2mm |
Hot-dipped Galvanized Steel | 4ftx4ft, 1x1m, 1x0.5m 0.5x0.5m | " X " shape Ball shape | 1-5mm | |
GRP/FRP/SMC | 1x1m, 1x0.5m, 0.5x0.5m | Ball shape | 4-24mm |
Packaging & Shipping
From plastic packaging to a high standard and packed into wooden trays vary in size, depending on the quantity purchased custom space-saving purposes.
